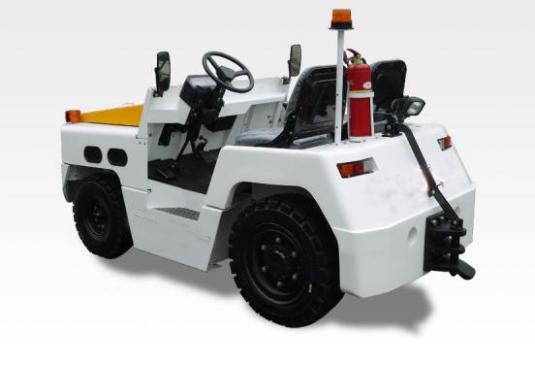

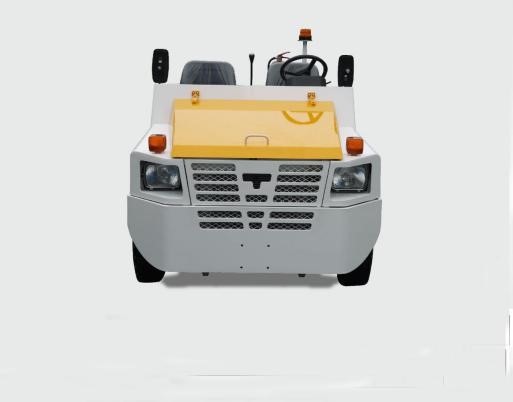

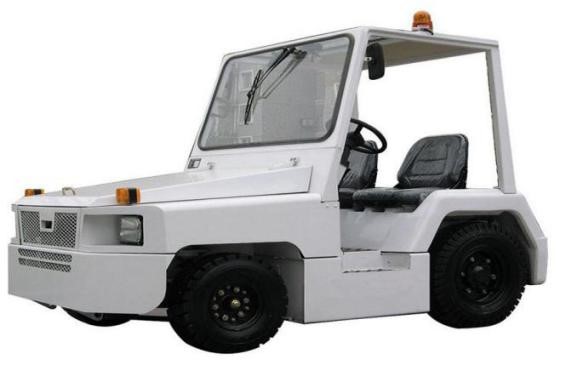

Baggage towing tractor is designed for towing baggage and cargos in airlines/aircraft servicing industry. It adopts most advanced technology in Europe and is of armed design.
Our baggage towing tractor is developed with three types: ZTHT20QY, ZTHT25QY,ZTHT30QY.ZTHT55QY
Type: ZTHT20QY
Engine: Cummins B3.3/ ISUZU
Gear Box: Italian hydraulic transmission
Meter:American Curtis
Tires:Front:6.50-10 Rear:28*9-15
Draw bar pull:20KN
Towing capacity:25000KG
Overall dimension：3070*1440*1980mm
Self Weight: 3300KG
Type: ZTHT25QY
Engine: Cummins B3.3
Gear Box: Italian hydraulic transmission
Meter:American Curtis
Tires:Front:6.50-10 Rear:28*9-15
Draw bar pull:25KN
Towing capacity:32000KG
Overall dimension：3070*1440*1980mm
Self Weight: 3300KG
Type: ZTHT30QY
Engine: Cummins B3.3
Gear Box: Italian hydraulic transmission
Meter:American Curtis
Tires:Front:6.50-10 Rear:28*9-15
Draw bar pull:30KN
Towing capacity:38000KG
Overall dimension：3070*1440*1980mm
Self Weight: 4150KG
